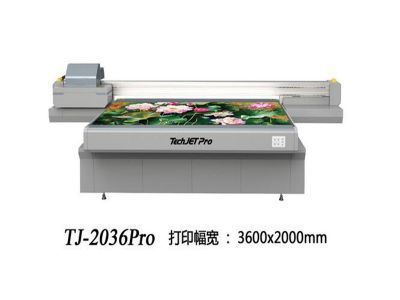

TJ-2036pro
TJ-2036pro
Features:
Ricoh gen5 industrial piezoelectric printhead
-The maximum printing size is 3600 x 2000mm
-Automatic media position system
-Variable dot technology and intelligent interweave printing technology
-Anti collision system for print head
-Imported THK 2.0 double linear guide
-White ink automatic circulation system
-Medium automatic positioning system.
Product specifications:
Product Model | TJ2036F | ||
Print Head Type | Ricoh DX5 industrial piezoelectric printhead | ||
Print Head | 3-8 | ||
Color | CMYK、CMYK+Wh、CMYKLcLm、CMYKLcLm+Wh | ||
Print Head Combination | CMYK+Wh（5-8） | CMYKLcLm+Wh（5-8） | |
Printing Speed | Sketch Mode | 60㎡/h | 60㎡/h |
Producing Mode | 40㎡/h | 40㎡/h | |
Quality Mode | 30㎡/h | 30㎡/h | |
High Quality Mode | 20㎡/h | 20㎡/h | |
Max Printing Size | 3600×2000mm | ||
Printing Thickness | 100mm | ||
Media Weight | 50kg/㎡ | ||
RIP Software | PhotoPrint、 Wasatch、ONYX、Caldera | ||
Interface | Standard USB Interface | ||
Dual UV lamp Curing | |||
Ink Supply | Vacuum Negative Pressure、Continuous Ink Supply System | ||
Power Supply | AC220V±10%，≥32A，50/60HZ | ||
Operating Environment | Temp:15-30℃，Humidity:30%-70% | ||
Dimension(L*W*H) | 4200mm×4400mm×1450mm | ||
Device Weight | 1900kg | ||
.
机器参数：
