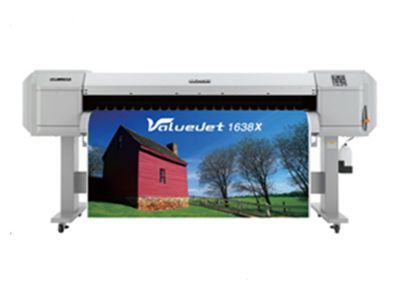

VJ-1638X

2017-09-07handler858

VJ-1638X

VJ-1638X

Features:

-The 7th generation piezo print head

-Staggered dual print heads

-The maximum printing width is 1615mm,the highest printing speed is 120sqm/H

-Variable dot technology and intelligent interweave printing technology

-3 steps head height adjustment

-Media heating system

-Rear media feed lever

-Equipped the aoutomatic cutting function

-Take up system included (up to 30kg)

-Easy daily maintenance



 Product specifications:



Product Model

VJ-1638X

Printing Tech

7th Generation Micro Piezo Print Head Tech



Color

KMCY / CMYKLcLm / CMYKLcLmWhMt

Print Head Nozzle Configuration

(180 nozzles×8 lines)×2 print head

Ink Cartridge

8

Maximum Media Width

1625mm

Maximum Print Width

1615mm

Print Head Height

1.5mm/2.5mm/4mm(Adjustable)

Heating System

3 segments heating system

Printing Language

MH-GLMH-GL/2MH-RTLRTL-PASS

Printing Resolution

1440/1080/ 720/ 540/ 360 DPI

Output Mode

Quality / Graphics / Banner/ Custom

Print Resolution and Speed

360×360dpi

120/h

360×720dpi

70/h

540×360dpi

46/h

720×720dpi

36/h

720×1080dpi

24/h

720×1440dpi

18/h

1080×1080dpi

16/h

1080×1440dpi

12/h

1440×1440dpi

9/h

Media Core Diameter

2/3 inches

Media Weight

30Kg/80Kg(Optional)

Interface

Ethernet 100BASE-TX/10BASE-T

Memory

256M

Power Specification

AC90132V/AC198264Vself-adaptive);HZ50/60Hz±1Hz

Power Consumption

Operation

200W

Standby

45W

Operation Environment

Temp2032℃;Humidity4060%no condensation

Dimension

2698×886×1262(mm)

Weight

220Kg

.
